3 Inch Super Thickness Model Bigger Crimping Force Hydraulic Hose Crimping Machine PLC Control System 2800KN Crimper Force And 6-76mm Crimping Range 15 Dies For Hydraulic Applications

3 Inch Super Thickness Model Bigger Crimping Force Hydraulic Hose Crimping Machine PLC Control System 2800KN Crimper Force And 6-76mm Crimping Range 15 Dies For Hydraulic Applications

Markenbezeichnung:	FY
Modellnummer:	FY-CBK-120C
MOQ:	1 Satz
Preis:	5000
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsfähigkeit:	300 Sätze pro Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

Shanghai, China

Zertifizierung:

Dokument:

our new catalogue.pdf

Gewicht:

1250 kg

Dimension:

755*1045*1630MM

Stromspannung:

220V/380V/415V 50/60Hz

Leistung:

5,5 kW

Crimpkraft:

2800 kN

Crimpbereich:

6 bis 76 mm

Produktname:

3-Zoll-Modell mit Superdicke, größere Crimpkraft, Hydraulikschlauch-Crimpmaschine, SPS-Steuerungssys

Verpackung Informationen:

Standard -Holzkiste exportieren

Versorgungsmaterial-Fähigkeit:

300 Sätze pro Monat

Hervorheben:

3 inch hydraulic hose crimping machine

PLC control hose crimper 2800KN

hydraulic hose crimper 6-76mm range

Beschreibung des Produkts

3 Inch Super Thickness Model Bigger Crimping Force Hydraulic Hose Crimping Machine PLC Control System 2800KN Crimper Force And 6-76mm Crimping Range 15 Dies For Hydraulic Applications

Product Overview

3-Inch Super Thickness Hydraulic Hose Crimping Machine: Unrivaled 2800KN Force with Advanced PLC Control

Overview

Introducing our 3-Inch Super Thickness Model Hydraulic Hose Crimping Machine, a heavy-duty solution engineered for the most demanding hydraulic applications. This robust machine boasts an unprecedented 2800KN crimper force, a wide 6-76mm crimping range, and an advanced PLC Control System, ensuring unparalleled precision, efficiency, and reliability. Equipped with 15 interchangeable dies and versatile voltage options, this crimper is the ultimate tool for hydraulic/car repair shops, the oil industry, and hose manufacturers across the USA, Europe, and Southeast Asia, seeking superior performance and consistent, factory-quality crimps.

Key Features and Advantages

Unmatched 2800KN Crimping Force for Heavy-Duty Hoses

At the core of this machine lies its colossal 2800KN crimper force, making it a leader in its class. This immense power allows it to effortlessly handle super thick and high-pressure hydraulic hoses up to 3 inches, ensuring every crimp is exceptionally strong, secure, and leak-proof. This capability guarantees the integrity and longevity of your hydraulic assemblies even in the most strenuous operating conditions, significantly reducing the risk of failure and enhancing operational safety. For applications requiring the utmost in crimping power, this machine delivers without compromise.

Advanced PLC Control System for Precision and Automation

The integrated PLC (Programmable Logic Controller) Control System elevates the machine's precision and automation capabilities to new heights. This intelligent system allows for highly accurate and repeatable control over all crimping parameters, ensuring consistent, high-quality results with every operation. The user-friendly interface simplifies complex tasks, minimizes human error, and optimizes the entire crimping process, leading to increased productivity, reduced material waste, and superior finished products. Experience seamless operation and unparalleled control with our advanced PLC system.

Expansive Crimping Range (6-76mm) with 15 Dies

With an impressive crimping range from 6mm to 76mm (3 inches), this machine offers exceptional versatility to accommodate a vast array of hydraulic hose sizes and types. The inclusion of 15 high-quality, interchangeable dies further enhances its adaptability, allowing operators to quickly switch between different specifications without compromising on precision or efficiency. This comprehensive die set makes it a one-stop solution for diverse crimping needs, from standard repairs to specialized industrial applications.

Super Thickness Design for Enhanced Durability

The machine's Super Thickness design signifies its robust construction, built to withstand the rigors of continuous industrial use. This heavy-duty build ensures exceptional durability, stability during operation, and a prolonged service life, making it a reliable investment for businesses requiring a resilient crimping solution that performs consistently under pressure.

Optimized for Global Markets

With its flexible power configurations (110V/220V/380V/415V) and robust build, this hydraulic hose crimping machine is perfectly suited for the demanding markets of the USA, Europe, and Southeast Asia. It addresses the specific needs of hydraulic service providers, automotive repair centers, and the oil and gas sector, offering a reliable and high-performance solution for their crimping requirements.

Technical Specifications

Crimping Range	6-76mm (1/4"-3" inner diameter)
Quantity of Dies	15 sets
System Pressure	31.5Mpa
Motor Power	4kw
Voltage Options	110V/220V/380V/415V, 50HZ/60HZ
Crimping Force	2800KN
Work Efficiency	300pcs/h
Machine Dimensions	84010901760mm
Net Weight	1250kg

Additional Models

Model	FY-CBK-120C Hose Pressing Machine
Crimping Range	6-76mm (1/4"-3")
Crimping Force	2800KN
Max. Opening	165mm
Special Features	Customized die sets available, Special voltage options: 110V/220V/380V/415V 50/60Hz

Frequently Asked Questions

What maximum hose size can this machine crimp? The machine supports hoses up to 76 mm (3 inches) in outer diameter.
What does 2800 kN mean in practical terms? 2800 kN (≈280 tons) is the maximum closing force the crimper can apply, suitable for high-pressure and large-diameter hydraulic hose assemblies.
Is the machine compatible with local power supplies? Yes — it's available in 220 V or 380 V configurations. Please confirm your local voltage when ordering.
Can I store different crimp programs? Yes — the PLC system stores multiple presets (crimp diameter, pressure and dwell time) for quick job changeovers.
Are custom dies available? Yes — additional and custom dies for specific fittings and non-standard hoses can be supplied on request.

Product Images

3 Inch Super Thickness Model Bigger Crimping Force Hydraulic Hose Crimping Machine PLC Control System 2800KN Crimper Force And 6-76mm Crimping Range 15 Dies For Hydraulic Applications 0

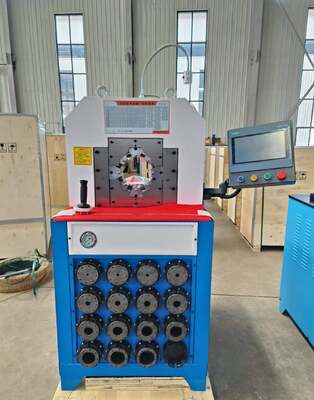

Front view

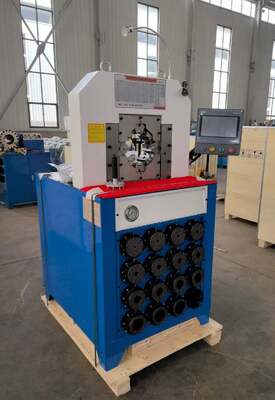

Side view

Control panel

Die set

In operation

Crimping demonstration

Component details

FY-CBY-51B Model

Specifications

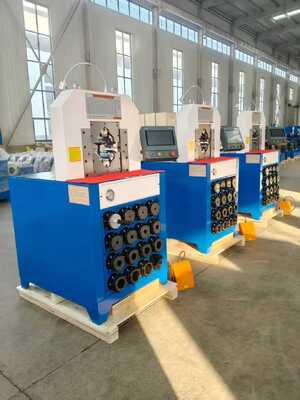

Workshop environment

Close-up view

Operator using machine

Operation Video

View Operation Video

SEO Keywords

Hydraulic Hose Crimping Machine, Hose Crimper, 3 Inch Hose Crimper, PLC Hose Crimper, 2800 kN crimper

Conclusion

This 3 Inch Electric Hydraulic Hose Crimping Machine combines high force, wide range and automated PLC control to deliver dependable, production-grade crimping for workshops and manufacturers in the USA, Europe and Southeast Asia. Contact your supplier for configuration options, die sets and voltage choices to optimize the machine for your workflow.

The 3 Inch 6-76mm Hydraulic Hose Crimping Machine is a high-performance solution tailored for businesses focused on hydraulic applications. With its wide crimping range, multiple control system options, and fast change mould design, this machine enhances efficiency and productivity in hydraulic repairs and services. Invest in this reliable hydraulic hose crimping machine to elevate your operations and achieve outstanding results in hose management!
