3 Inch Super Thickness Model 220v/380v Hydraulic Hose Crimping Machine PLC/botton Control System 2800KN Crimper Force And 6-76mm Crimping Range 15 Dies For Hydraulic Applications

3 Inch Super Thickness Model 220v/380v Hydraulic Hose Crimping Machine PLC/botton Control System 2800KN Crimper Force And 6-76mm Crimping Range 15 Dies For Hydraulic Applications

Markenbezeichnung:	FY
Modellnummer:	FY-CBK-120C
MOQ:	1 Satz
Preis:	5000
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsfähigkeit:	300 Sätze pro Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

Shanghai, China

Zertifizierung:

Gewicht:

1250 kg

Dimension:

755*1045*1630MM

Stromspannung:

220V/380V/415V 50/60Hz

Leistung:

5,5 kW

Crimpkraft:

2800 kN

Crimpbereich:

6 bis 76 mm

Produktname:

3-Zoll-Super-Thickness-Modell 220 V/380 V Hydraulikschlauch-Crimpmaschine mit 2800 kN Crimpkraft, SP

Verpackung Informationen:

Standard -Holzkiste exportieren

Versorgungsmaterial-Fähigkeit:

300 Sätze pro Monat

Hervorheben:

3 inch hydraulic hose crimping machine

PLC control hydraulic hose crimper

2800KN force hose pressing machine

Beschreibung des Produkts

3 Inch Super Thickness Model 220v/380v Hydraulic Hose Crimping Machine PLC/botton Control System 2800KN Crimper Force And 6-76mm Crimping Range 15 Dies For Hydraulic Applications

Product Overview

3-Inch Super Thickness Hydraulic Hose Crimping Machine: Heavy-Duty Performance for Industrial Applications

Overview

Introducing our industrial-grade 3-Inch Super Thickness Hydraulic Hose Crimping Machine, engineered to deliver unparalleled power and precision for the most demanding hose assembly tasks. Designed specifically for heavy-duty applications in hydraulic service centers, large-scale car repair shops, and the oil and gas industry, this robust machine ensures secure, leak-proof connections every time. Featuring an advanced PLC/button control system and a massive crimping force, it is the ultimate solution for professionals in the USA, Europe, and Southeast Asia seeking reliability and efficiency in high-volume environments.

Key Features and Characteristics

This heavy-duty hydraulic hose crimper is built to handle extreme workloads while maintaining exceptional accuracy. It comes equipped with 15 sets of precision dies, providing an extensive crimping range from 6mm to 76mm (up to 3 inches). This wide range allows operators to tackle everything from standard automotive hoses to thick, multi-wire industrial hydraulic lines.

•Massive Crimping Force: Boasting a formidable 2800KN crimping force, this machine effortlessly compresses super-thickness hoses and heavy-duty fittings, ensuring a factory-quality seal that withstands extreme pressures.

•Advanced PLC/Button Control System: The intuitive PLC (Programmable Logic Controller) and button interface offer precise control over the crimping process. This system allows for consistent, repeatable crimps, reducing operator error and increasing overall production speed.

•Dual Voltage Compatibility: Designed for global industrial use, the machine operates on both 220V and 380V power supplies, making it adaptable to various workshop environments across different regions.

•Super Thickness Capability: Specifically engineered to handle "super thickness" hoses, including 4-wire and 6-wire spiral hydraulic hoses commonly used in heavy machinery and oilfield equipment.

•Comprehensive Die Set: The inclusion of 15 die sets ensures that you have the right tool for almost any hose diameter within its impressive 6-76mm range, minimizing the need for additional equipment.

Advantages for Your Business

Investing in this 3-Inch Hydraulic Hose Crimping Machine provides substantial competitive advantages for businesses operating in demanding sectors:

•Unmatched Versatility: The ability to crimp hoses up to 3 inches in diameter means your shop can service a wider range of clients, from standard automotive repair to heavy construction and oil extraction equipment.

•Enhanced Productivity: The automated precision of the PLC control system significantly speeds up the crimping process, allowing for higher throughput and faster turnaround times for your customers.

•Superior Quality Assurance: The immense 2800KN force guarantees secure, durable crimps that meet or exceed stringent international safety and performance standards, reducing the risk of hose failure in critical applications.

•Global Market Readiness: With its robust design and dual-voltage capability, this machine is perfectly suited for the rigorous demands of the USA, European, and Southeast Asian industrial markets.

Technical Specifications

Crimping Range	6-76mm (1/4"-3" inner diameter)
Quantity of Dies	15 sets
System Pressure	31.5Mpa
Motor Power	4kw
Voltage Options	110V/220V/380V/415V, 50HZ/60HZ
Crimping Force	2800KN
Work Efficiency	300pcs/h
Machine Dimensions	84010901760mm
Net Weight	1250kg

Additional Models

Model	FY-CBK-120C Hose Pressing Machine
Crimping Range	6-76mm (1/4"-3")
Crimping Force	2800KN
Max. Opening	165mm
Special Features	Customized die sets available, Special voltage options: 110V/220V/380V/415V 50/60Hz

Frequently Asked Questions

What maximum hose size can this machine crimp? The machine supports hoses up to 76 mm (3 inches) in outer diameter.
What does 2800 kN mean in practical terms? 2800 kN (≈280 tons) is the maximum closing force the crimper can apply, suitable for high-pressure and large-diameter hydraulic hose assemblies.
Is the machine compatible with local power supplies? Yes — it's available in 220 V or 380 V configurations. Please confirm your local voltage when ordering.
Can I store different crimp programs? Yes — the PLC system stores multiple presets (crimp diameter, pressure and dwell time) for quick job changeovers.
Are custom dies available? Yes — additional and custom dies for specific fittings and non-standard hoses can be supplied on request.

Product Images

3 Inch Super Thickness Model 220v/380v Hydraulic Hose Crimping Machine PLC/botton Control System 2800KN Crimper Force And 6-76mm Crimping Range 15 Dies For Hydraulic Applications 0

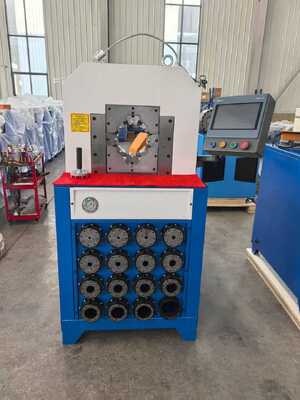

Front view

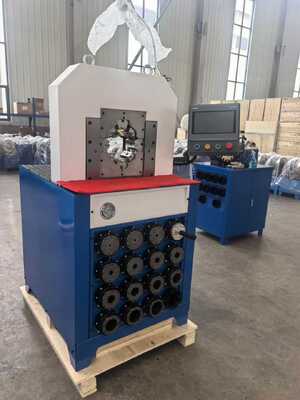

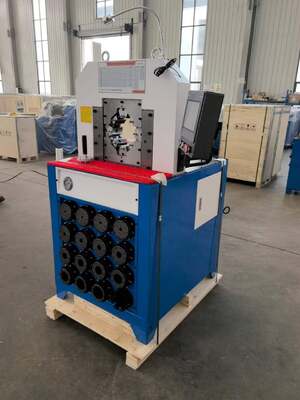

Side view

Control panel

Die set

In operation

Crimping demonstration

Component details

FY-CBY-51B Model

Specifications

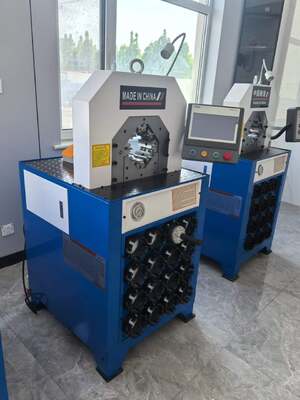

Workshop environment

Close-up view

Operator using machine

Operation Video

View Operation Video

SEO Keywords

Hydraulic Hose Crimping Machine, Hose Crimper, 3 Inch Hose Crimper, PLC Hose Crimper, 2800 kN crimper

Conclusion

This 3 Inch Electric Hydraulic Hose Crimping Machine combines high force, wide range and automated PLC control to deliver dependable, production-grade crimping for workshops and manufacturers in the USA, Europe and Southeast Asia. Contact your supplier for configuration options, die sets and voltage choices to optimize the machine for your workflow.

The 3 Inch 6-76mm Hydraulic Hose Crimping Machine is a high-performance solution tailored for businesses focused on hydraulic applications. With its wide crimping range, multiple control system options, and fast change mould design, this machine enhances efficiency and productivity in hydraulic repairs and services. Invest in this reliable hydraulic hose crimping machine to elevate your operations and achieve outstanding results in hose management!
