Einzelheiten zu den Produkten

Haus Produits

6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

Name: 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping
Brand: Shanghai Fanying Machinery Technology Co., Ltd.
SKU: FY-P38
Price: 1,725.00 USD
Availability: InStock

Markenbezeichnung:	FY
Modellnummer:	FY-P38
MOQ:	1 Satz
Preis:	USD$ 1850/1800/1750/1700
Zahlungsbedingungen:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Versorgungsfähigkeit:	300 Sätze pro Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China, Shanghai

Zertifizierung:

Dokument:

our new catalogue.pdf

Stromspannung:

Bei der Prüfung der Leistung wird die Leistung des Fahrzeugs gemäß Anhang I Nummer 3 ermittelt.

Bruttogewicht:

300 kg

Nettogewicht:

275 kg

Leistung(w):

3KW/4KW

Abmessung (L*B*H):

950*630*700 Millimeter

Paketabmessungen:

1000*680*750 Millimeter

Garantie:

1 Jahr

Zustand:

Neu

Kundendienst bereitgestellt:

Technischer Video-Support, Online-Support

Crimpkraft:

300 Tonnen/0,3 MT

Produktname:

2-Zoll-Crimpmaschine für bis zu 2,5 Zoll 6–51 mm hydraulische Schlauch-Crimpmaschine mit Schnellwech

Crimpbereich:

6–51 mm/1,5 Zoll/2 Zoll

Farbe:

Blau, blau oder nach Maß

Anwendung:

Crimp -Schlauch

Freier Sterben:

10 Sätze

Systemdruck:

26 MPA/31,5 MPA/260 bar/315 bar

Ausgangsvolumen der Pumpe:

2.5L/5L

Hohes Licht:

Kräuselungsmaschine des modernen hydraulischen Rohres, Kräuselungsmaschine des Schlagsteuerhydraulis

Verpackung Informationen:

HOLZKISTE

Versorgungsmaterial-Fähigkeit:

300 Sätze pro Monat

Hervorheben:

2 inch hydraulic hose crimping machine

hydraulic hose crimper with interchangeable dies

fast change mould hose crimping tool

Beschreibung des Produkts

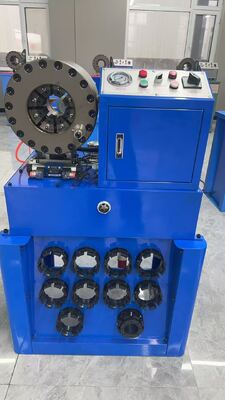

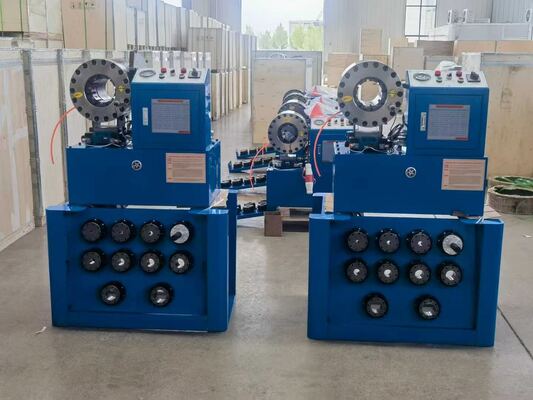

2 Inch Crimping Up To 2.5 Inch 6-51mm Hydraulic Hose Crimping Machine With Fast Change Mould Tool And Rack And 10 Interchangeable Dies For Versatile Crimping

Versatile 2-Inch Hydraulic Hose Crimping Machine with Fast-Change Tooling System
Elevate your hydraulic service efficiency with our industrial Hydraulic Hose Crimping Machine. Specifically designed for high-volume hydraulic/car repair shops and the demanding oil and gas industry, this machine bridges the gap between standard 2-inch crimping and specialized large-bore requirements.
This model is a top choice for professionals in the USA, Europe, and Southeast Asia who demand speed, precision, and a clutter-free workspace.

Key Features & Product Highlights
• Extended Crimping Capability: While optimized for standard 6mm to 51mm (2-inch) hoses, this high-performance unit is engineered with an oversized opening to accommodate specialized fittings up to 2.5 inches.
• Revolutionary Fast-Change Mould Tool: Eliminate the manual labor of swapping dies. Our magnetic quick-change tool allows you to switch all eight die segments in seconds, significantly reducing downtime.
• Integrated Die Rack: Keep your workspace organized and your dies protected. The built-in storage rack ensures that all 10 interchangeable die sets are within arm’s reach and organized by size.
• Precision Control: Features a high-accuracy micrometer adjustment system to ensure every crimp meets exact manufacturer specifications for high-pressure safety.
Why This Machine Stands Out
1. Maximum Productivity: The combination of the Fast-Change Tool and the Die Rack makes this one of the fastest manual-load machines on the market—perfect for busy repair shops.
2. Unmatched Versatility: From small automotive fuel lines to heavy-duty industrial 4-wire spiral hoses, this machine handles it all with a single setup.
3. Built for Rigorous Use: Designed with a reinforced machine head and premium hydraulic valves to ensure consistent performance in the high-heat environments of Southeast Asia or the heavy-duty oil fields of North America.

Technical Specifications

Model	FY-P51 Hose Crimping Machine
Crimping Range	6-51mm (1/4"-2")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (LWH)	950630700 mm
Weight	275kg
Die Sets Included	10 sets
