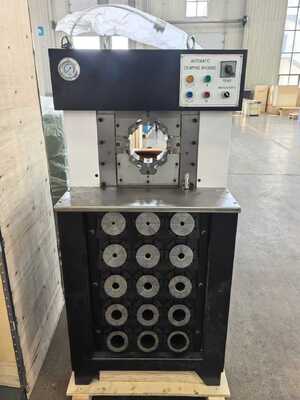

3 Inch Button Control Hydraulic Hose Crimping Machine with 6-76mm Crimping Range, 165mm Max Opening, and 15 Dies

3 Inch Button Control Hydraulic Hose Crimping Machine with 6-76mm Crimping Range, 165mm Max Opening, and 15 Dies

Markenbezeichnung:	FY
Modellnummer:	Haushaltsjahr-CBK120
MOQ:	1 Satz
Preis:	USD$ 5850
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsfähigkeit:	10000 Sätze pro Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

Dokument:

our new catalogue.pdf

Kräuselungsgeschwindigkeit:

10-15 Sekunden/Zeit

Quantität Würfel:

15 Sätze

Ausgangsvolumen der Pumpe:

10L/16L

Motorleistung:

5,5 kW

Kräuselungspräzision:

±0,01 mm

Größe:

100*80*163 cm

Gewicht:

1250 kg

Stromversorgung:

220 V/380 V/415V/440 V

Produktname:

3-Zoll-Hydraulikschlauch-Crimpmaschine mit Knopfsteuerung in schwarzer Farbe mit 6-76 mm Crimpbereic

Farbe:

Blau

Verpackung Informationen:

Standard -Holzkiste

Versorgungsmaterial-Fähigkeit:

10000 Sätze pro Monat

Hervorheben:

3 inch hydraulic hose crimping machine

black button control crimping machine

6-76mm crimping range hydraulic machine

Beschreibung des Produkts

3 Inch Button Control Black Color Hydraulic Hose Crimping Machine With 6-76mm Crimping Range And 15 Dies 165mm Max Opening

3 Inch Button-Control Black Hydraulic Hose Crimping Machine — 6–76 mm, 15 Dies, 165 mm Max Opening
Product Overview
The 3 Inch button-control Black Hydraulic Hose Crimping Machine is a professional-grade solution designed for hydraulic workshops, car repair shops and oil-service providers across the USA, Europe and Southeast Asia. With a wide crimping range of 6–76 mm (up to 3 inches), a generous 165 mm maximum jaw opening and a set of 15 interchangeable dies, this machine delivers reliable, repeatable crimps for a broad range of hydraulic and industrial hose assemblies. The intuitive button-control panel simplifies operation while the black industrial finish provides a durable, low-maintenance exterior.
Key Features & Characteristics
• Crimping Range: 6–76 mm (up to 3 inches) to support small to mid-size hydraulic hoses and fittings.
• Max Opening: 165 mm maximum jaw opening for easier loading of larger fittings and assemblies.
• Control: Simple, responsive button-control panel with start/stop and single-cycle functions for safe, consistent operation.
• Dies: 15 interchangeable dies included to cover the most commonly used hose sizes and fittings for fast changeovers.
• Build Quality: Heavy-duty welded steel frame, precision-machined crimp head and robust hydraulic components for long-term reliability.
• Finish: Black industrial powder coat for corrosion resistance and a professional appearance in busy workshops.
• Safety: Emergency stop, pressure relief and safety interlocks protect operators during production.
• Maintenance Access: Thoughtful layout and access panels make routine checks and die changes fast and straightforward.
Advantages
• Versatile Application: Covers a wide variety of hoses used in hydraulics, automotive repair and oilfield maintenance—making it an ideal all-rounder for repair shops and small production facilities.
• Fast Job Changeovers: With 15 dies and a 165 mm opening, operators can quickly adapt to different hose assemblies and larger fittings without extra tooling.
• Easy to Operate: The button-control interface minimizes training time and reduces operator error compared with more complex control systems.
• Durable & Low Maintenance: Rugged construction and proven hydraulic components lower lifetime maintenance costs and maximize uptime.
• Improved Safety: Built-in safety features reduce the risk of accidents and support safe, continuous operation in busy shop environments.
Technical Specifications (Typical)
• Model: 3 Inch Button-Control Black Hydraulic Hose Crimping Machine
• Crimping Range: 6 mm – 76 mm (up to 3.0 in)
• Maximum Jaw Opening: 165 mm
• Dies Included: 15 interchangeable dies (standard set)
• Control Type: Button-control panel (start/stop, single-cycle)
• Drive: Electric hydraulic system (motor power dependent on model)
• Power Supply: 220 V / 380 V options (specify at order)
• Repeatability: Typical industrial tolerance (model dependent)
• Safety: Emergency stop, pressure relief valve, safety interlocks
• Approx. Weight: 1250 kg (model dependent)
• Dimensions (approx.): 755 × 1045× 1630 mm
Frequently Asked Questions (FAQ)
Q1: What maximum hose size can this machine crimp?
A1: The machine supports hose diameters up to 76 mm (3 inches).
Q2: What is the benefit of a 165 mm maximum opening?
A2: The 165 mm opening simplifies loading of larger fittings and assemblies, reducing setup time for bulky jobs.
Q3: How many dies come with the crimper and can I order more?
A3: The unit includes 15 interchangeable dies. Additional or custom dies are available from the supplier for special fittings or non-standard hose sizes.
Q4: Is the control system easy to use for new operators?
A4: Yes — the button-control panel is designed for straightforward operation with minimal training required.
Q5: Which voltage should I choose for my region?
A5: The machine is available in 220 V and 380 V configurations. Specify your local supply when ordering to ensure compatibility.
SEO Keywords to Include
Hydraulic Hose Crimping Machine, 3 Inch Hose Crimper, button-control hose crimper, 15 dies hose crimper, 6–76 mm hose crimper.
Conclusion
This 3 Inch button-control Black Hydraulic Hose Crimping Machine combines flexibility, durability and operator-friendly controls to meet the needs of hydraulic shops, car repair centers and oil-service operations in the USA, Europe and Southeast Asia. With a 6–76 mm crimp range, 15 dies and a 165 mm opening, it’s a dependable, high-value choice for consistent, high-quality hose assemblies. Contact your local distributor to configure voltage, die sets and delivery options.

Technical Specifications

Specification	Details
Crimping Range	6-76 mm (1/4~3")
Quantity of Dies	15 sets
Accuracy	0.01 mm
Output Volume of Pump	10L/16L
System Pressure	31.5 mpa
Motor Power	5.5kw/7.5Kw
Voltage	110V/220V/380V/415V 50/60Hz (optional)
Crimping Force	1500 t
Work Efficiency	300 pcs/h
Maximum Open Diameter	165 mm
Max Open Tolerance	60 ±mm
Machine Dimension	10008001630 mm
Package Dimension	11008501730 mm
Net Weight	1250 kg
Gross Weight	1300 kg

Control System Specifications

Specification	Details
Control System	PLC/BUTTON/DIGITAL PANEL
Model	AC Hose Crimping Machine
Crimping Speed	10-15s/time
Weight	1250 KG
Motor Power	5.5 KW
Quantity of Dies	15 Sets
Max Opening	158 mm
Output Volume of Pump	10L/16L
Crimping Type	One-time Crimping
Crimping Range	6-76 mm

Applications

FY Hose Crimping Machine, Model Number FY-CBK120, is a perfect solution for crimping 3 inch hoses from 6-76mm in diameter. It features one-time crimping technology with a motor power of 5.5KW and system pressure of 31.5mpa. This machine is widely used for various applications including crimping air, water, fuel, and oil lines, as well as hydraulic hoses that require high pressure to work properly. It is ideal for automotive, industrial, and commercial applications.

Frequently Asked Questions

What sizes of hoses can this machine crimp?

The hydraulic hose crimping machine accommodates hoses ranging from 6mm to 76mm, suitable for various applications in different industries.

How does the fast change mould system benefit operations?

The fast change mould system allows for quick die swaps, significantly reducing downtime and enhancing workflow efficiency.

Is this machine suitable for heavy-duty use?

Yes, it is designed to handle hoses with up to 6 wires, making it ideal for heavy-duty and high-pressure hydraulic applications.

How user-friendly is the operation?

The button control system is intuitive and straightforward, enabling quick and effective operation even for users with limited experience.

How durable is this machine?

Constructed from high-quality materials, this hydraulic hose crimping machine is built to withstand continuous use and provide long-lasting performance in demanding environments.

Conclusion

The Button Control Black Color 3 Inch Hydraulic Hose Crimping Machine is a vital tool for professionals in the hydraulic industry. With its broad crimping capabilities, fast change mould tools, and user-friendly design, it enhances productivity and reliability in hose management. Invest in this high-performance hydraulic hose crimping machine to meet your operational needs and achieve exceptional results in your hydraulic applications!

Customization Options

Achieve perfect crimping performance with our custom FY-CBK120 AC Hose Crimping Machine. It features FY Brand Name, system pressure of 31.5mpa, Max Opening of 158mm, Crimping Range of 6-76mm, Motor Power of 5.5KW and 15 Sets of dies, perfect for 3 inch hose crimping applications.

Support and Services

Our AC Hose Crimping Machine comes with technical support and service for your convenience. Our experts are available to help you with any questions or issues you may have. We provide comprehensive training sessions on product use, along with step-by-step instructions. We also offer a wide range of spare parts and accessories including crimping heads, hose cutters, and more.

Packing and Shipping

The AC Hose Crimping Machine is securely packaged in a wooden box with additional styrofoam cushioning to prevent damage during shipping. All packages are tracked until delivery to ensure safe arrival.

Additional Product Information

Brand Name: FY
Model Number: FY-CBK120
Origin: China
Construction Material: Durable metal
Installation Time: Approximately 2 hours
