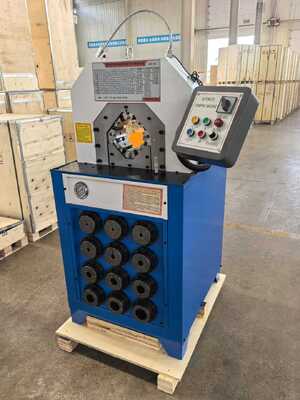

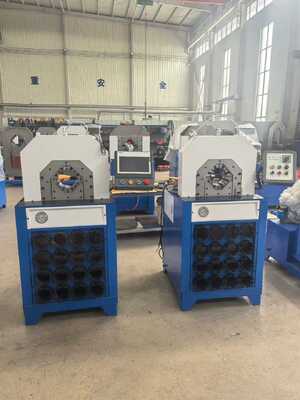

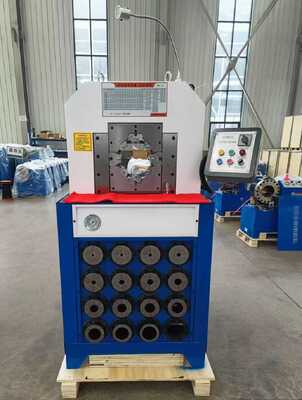

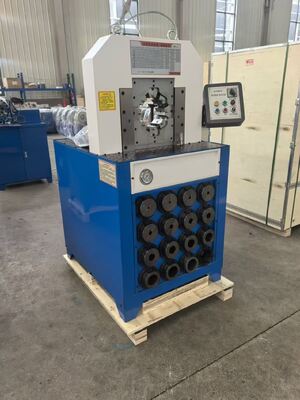

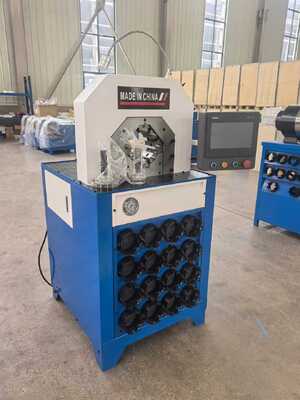

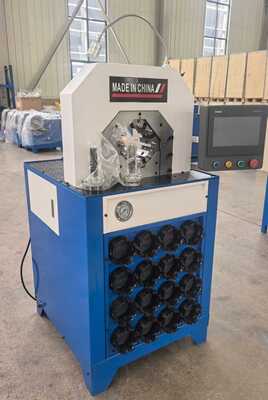

3 Inch Hydraulic Hose Crimping Machine with 1000T Crimping Force 31.5MPA Rated Pressure and 6-76mm Crimping Range

3 Inch Hydraulic Hose Crimping Machine with 1000T Crimping Force 31.5MPA Rated Pressure and 6-76mm Crimping Range

Markenbezeichnung:	FY
Modellnummer:	FY-CBK-120C
MOQ:	1 Satz
Preis:	5000
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsfähigkeit:	300 Sätze pro Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

Shanghai, China

Zertifizierung:

Dokument:

OUR CATALOGUE.pdf

Gewicht:

1250 kg

Zustand:

NEU

Abmessung (L*B*H):

755*1045*1630MM

Garantie:

1 Jahr

Kundendienst bereitgestellt:

Technischer Support des Videos, Online -Support

Stromspannung:

110V/220V/380V/415V 50/60Hz

Leistung (W):

5,5 kW

Kriminkraft:

1000T

Farbe:

Blau/weiß oder kundenspezifisch

Crimp -Reichweite:

6–76 mm, 1/4 bis 3 Zoll, 1/4 bis 3 Zoll

Produktname:

3-Zoll-Knopfsteuerung Systerm 15 Matrizen mit Schnellwechsel-Formwerkzeugen Hydraulikschlauch-Crimpm

Anwendung:

Crimp -Schlauch

Freier Sterben:

15 Sätze

Bewertungsdruck:

31,5mpa

Schlüsselwörter:

Kräuselungsmaschine hydraulischen Schlauches PLC

Hochlicht:

3-Zoll-Schlauchpressmaschine, Spiralschlauchpressmaschine, Schlauchrohrpressmaschine

Verpackung Informationen:

Standard -Holzkiste exportieren

Versorgungsmaterial-Fähigkeit:

300 Sätze pro Monat

Hervorheben:

1000T Crimping Force Hydraulic Hose Crimping Machine

31.5MPA Rated Pressure Hose Pressing Machine

6-76mm Crimping Range Hydraulic Fitting Press

Beschreibung des Produkts

3 Inch Button Control System 15 Dies With Fast Change Moulds Tools Hydraulic Hose Crimping Machine

Hydraulic Hose Pressing Machine with Button Control System

Introducing our 3 Inch Hydraulic Hose Pressing Machine, engineered for high efficiency and quick operation. Designed for precision and versatility, this machine is perfect for various industrial applications.

Key Features

High Output of 300 Pieces/Hour - Designed for rapid crimping to boost productivity
Button Control System - Intuitive interface for precise operation
Fast Change Mould Tools - Quick-change moulds for seamless transitions
Versatile for Big Elbow Fittings - Handles larger hydraulic fittings with ease
Robust Construction - Built for durability and long-term reliability
Safety Features - Designed with operator safety in mind

Operation Precautions

Perform 20-30 unloaded crimps when first using the machine
In winter, perform additional unloaded crimps to increase oil temperature
Select and install appropriate molds based on hose specifications
Position hose with joint properly for complete crimping
Execute crimping operation until automatic mold opening
Verify crimped dimensions and adjust micrometer as needed

Technical Specifications

Crimping Range	6-76mm (1/4"-3" inner diameter)
Quantity of Dies	13 sets
System Pressure	31.5Mpa
Motor Power	4kw
Voltage Options	110V/220V/380V/415V, 50HZ/60HZ
Crimping Force	2800KN
Work Efficiency	300pcs/h
Machine Dimensions	840×1090×1760mm
Net Weight	1250kg
